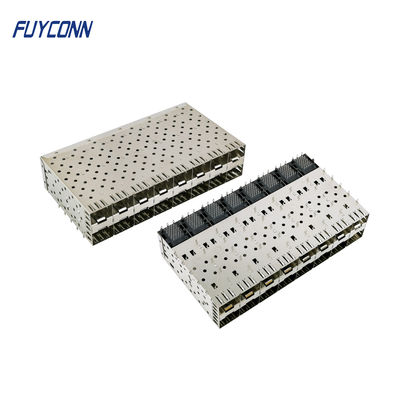

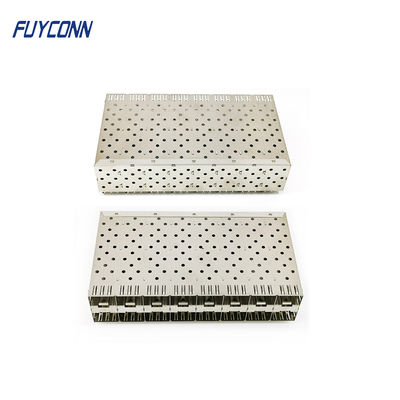

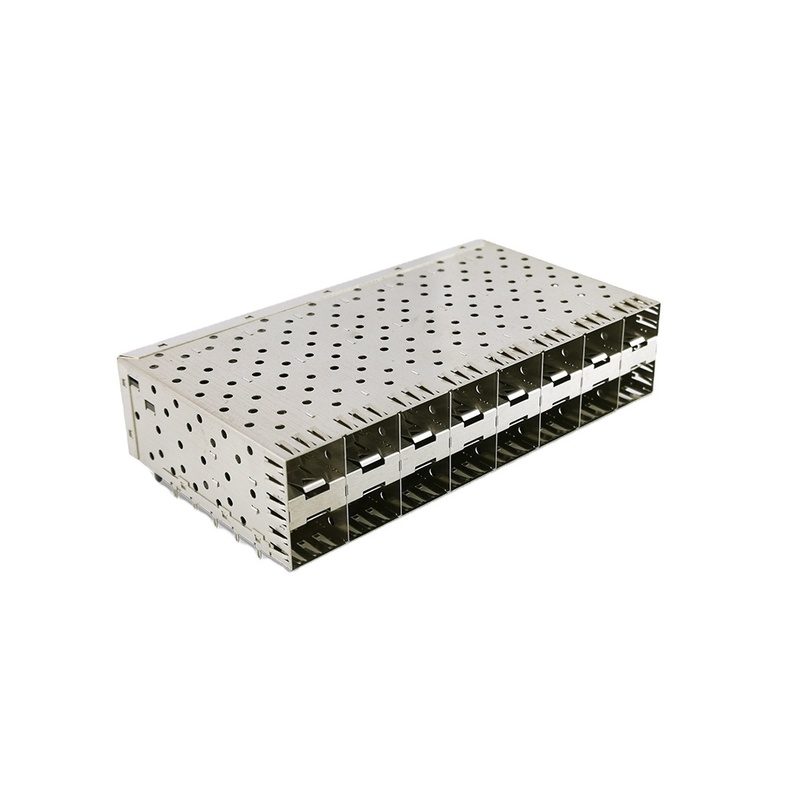

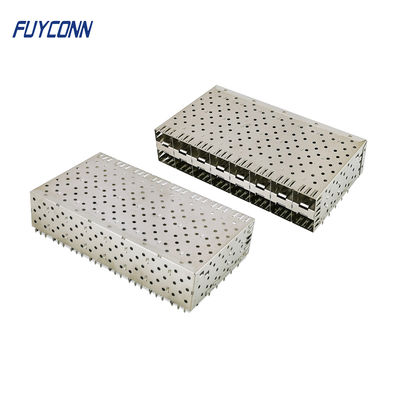

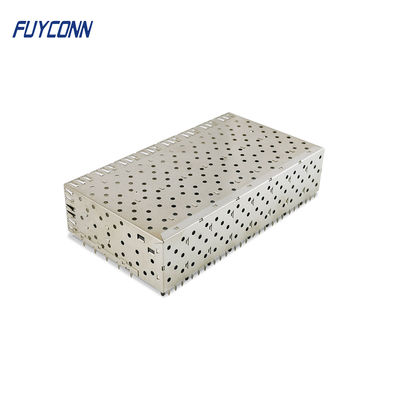

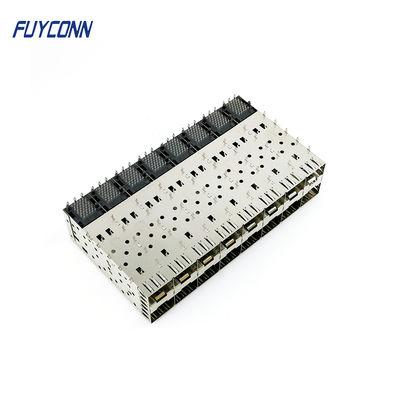

2-by-4 Multi-Port Female SFP Cage Assembly Connector with Light, 320pin Press-Fit Stackable 2x8 Ports SFP Connector
Product Overview
The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a primary optical transceiver for data communication. Introduced in the early 2000s to replace the GBIC connector, it complies with IEEE 802.3 and SFF-8472 specifications, handling up to 4.25Gb/s with greater port density. Its successor, SFP+ (SFP10), introduced in 2006, supports data rates up to 10Gb/s and complies with IEEE802.3ae, SFF-8431, and SFF-8432 specifications. Both SFP and SFP+ connectors support Gigabit Ethernet, Fibre Channel, SONET, OTN, and other communication standards.
Key Features
| Product Name: |
SFP Connector |
| Product Line: |
Small Form-factor Pluggable |
| Connector Gender: |
Female Centronic Connector |
| Contact Type: |
Small Form-factor Pluggable |
| Number of Positions: |
320pin |
| Ports: |
2×8 (16 Ports) |
| Contact Material: |
Phosphor Bronze |
| Finish: |
Nickel Silver |
| Insulation Material: |
PBT |
| Lightpipe: |
Without |
Electrical Specifications
| Current Rating: |
1AMP |
| Withstanding Voltage: |
500V for one minute |
| Insulator Resistance: |
500MΩ min (at DC500V) |
| Contact Resistance: |
35MΩ Max |
| Operation Temperature: |
-55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Telecommunications
- Switches
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet
- Servers
Packaging & Shipping
Strong Packaging Options:
- Vacuum Tray
- PE Bag
- Strong bags/boxes/cartons
- PE Bag + Strips
Company Profile
Dongguan Fuyconn Electronics Co., Ltd
Established in 2004, we specialize in IT and communication connectors. Our product range includes 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series, and RJ series with over 1,000 models available.
Our products are UL- and SGS-certified, RoHS compliant, with a defect rate below 0.5%. Our ISO 9001:2008 and ISO 14001:2004 certified factory spans 5,000 square meters with dedicated R&D, molding, plastic injection, stamping, and assembly production lines.
Why Choose Us
- 16 years of Centronic Connector production experience
- R&D engineers with over 20 years' experience
- Thousands of molds available
- UL Certified, ROHS compliant
- Factory-direct pricing
- Free samples within 2 days
- Short lead time (within one week for standard products)
- No MOQ requirements
- Custom logo options for products and packaging
- Complete in-house production for quality control
- Multiple payment methods accepted
