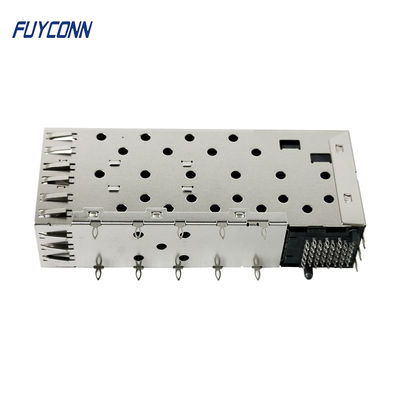

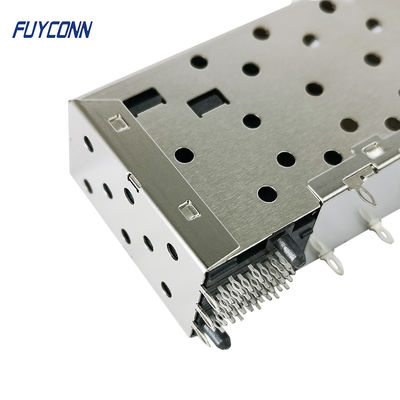

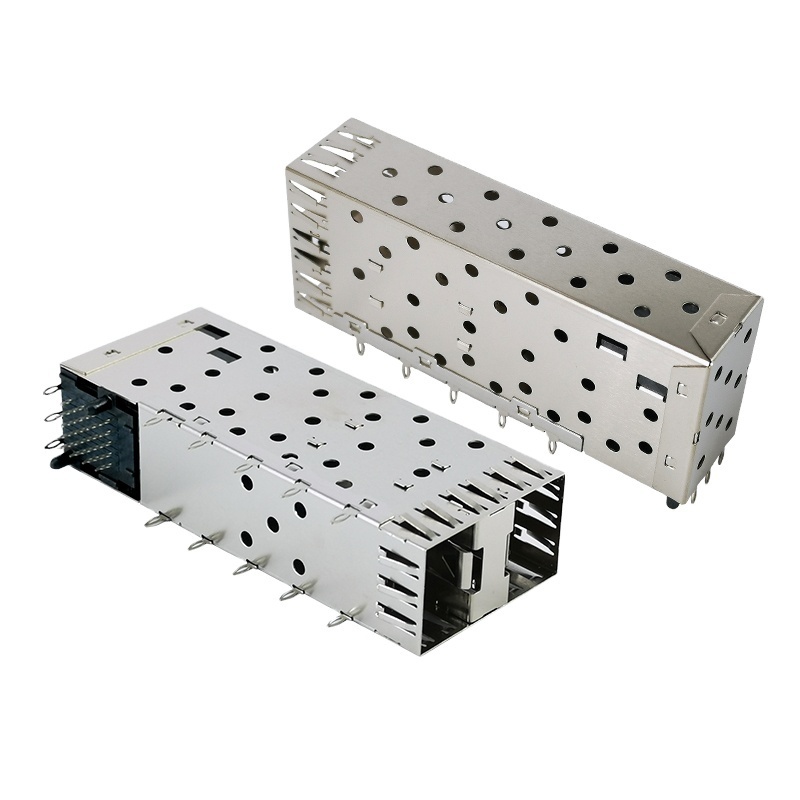

2x1 Ports Housing Shielded SFP Cage With Connector Press-Fit Stackable 2-by-1 Multi-Port Female SFP Connector W/o Light Pipe
Product Overview
The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a primary optical transceiver for data communication. Introduced in early 2000, it replaced the gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Compliant with IEEE 802.3 and SFF-8472 specifications, SFP connectors handle up to 4.25Gb/s with greater port density than GBIC, earning the nickname "mini GBIC."
The SFP+ (SFP10) extension, introduced in 2006, supports data rates up to 10Gb/s (IEEE802.3ae, SFF-8431/8432). Both SFP and SFP+ support Gigabit Ethernet, Fibre Channel, SONET, OTN, and other standards, with copper and optical variants available.
Product Features
| Feature |
Specification |
| Product Name |
SFP Connector |
| Product Line |
Small Form-factor Pluggable |
| Connector Gender |
Female Centronic Connector |
| Contact Type |
Small Form-factor Pluggable |
| Number of Position |
40pin |
| Ports |
2*1 2 Ports |
| Contact Material |
Phosphore Bronze |
| Finish |
Nickel Silver |
| Insulation Material |
PBT |
| Lightpipe |
No |
Electrical Specifications
| Specification |
Value |
| Current Rating |
1AMP |
| Withstanding Voltage |
500v for one minute |
| Insulator Resistance |
500MΩ min (at DC500V) |
| Contact Resistance |
35MΩ Max |
| Operation Temperature |
-55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Networking
- Telecommunications
- Switches
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet
- Servers
Packing & Shipping
Strong Packaging Options:
- Vacuum Tray
- PE Bag
- Strong bags/boxes/cartons
- PE Bag + Strips
Company Profile
Dongguan Fuyconn Electronics Co., Ltd specializes in IT and communication connectors since 2004. Our product range includes 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series, and RJ series with over 1,000 models available.
Our UL- and SGS-certified products are RoHS compliant with a defect rate below 0.5%. Our ISO 9001:2008 and ISO 14001:2004 certified 5,000 sqm factory features R&D, molding, plastic injection, stamping, and assembly production lines.
Why Choose Us
- 16 years Centronic Connector production experience
- R&D engineers with 20+ years' experience
- Thousands of molds available
- UL Certified, ROHS compliant
- Factory-direct pricing
- Free samples within 2 days
- Short lead time (1 week for standard products)
- No MOQ requirements
- Custom logo options for products and packaging
- Full control over quality, costs, and delivery through in-house production
- Flexible payment methods
