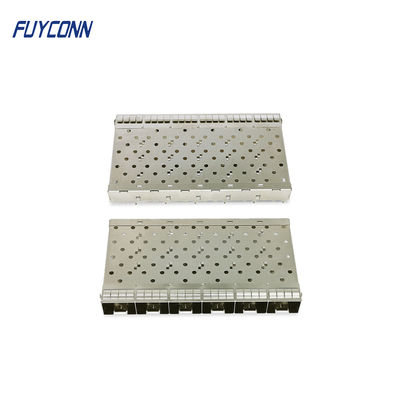

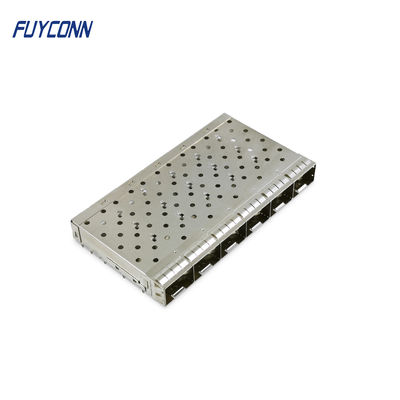

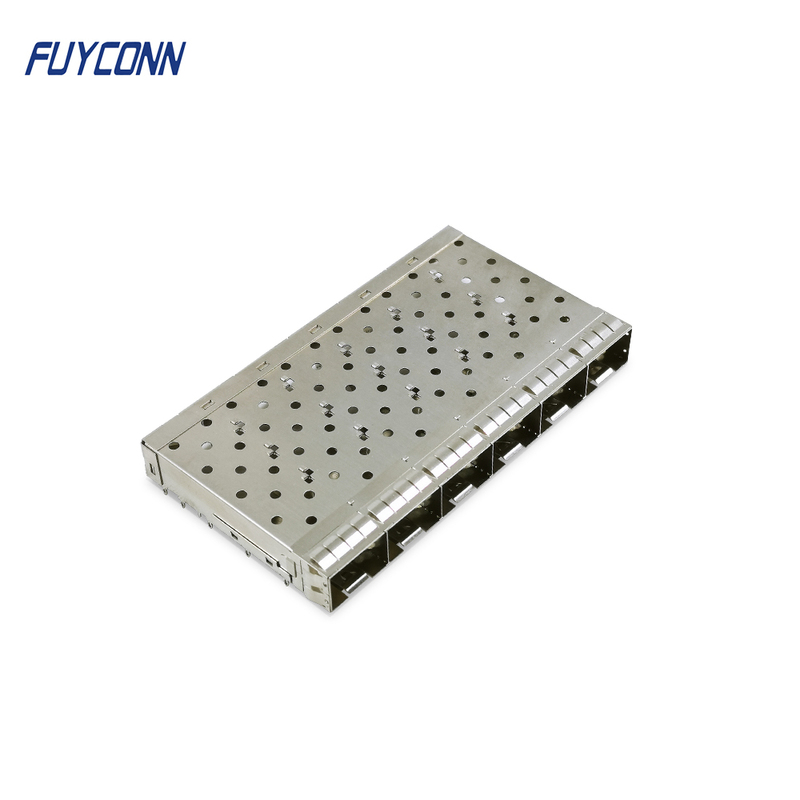

Press Fit Pins 1x6 SFP+ Cage Connector Without Light
SFP Cage 1x6 Ports Straight SFP+ Cage Connector
The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a key optical transceiver for data communication. Introduced in 2000 to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s, making them ideal for high-speed networking systems.
The SFP+ (SFP10) extension, introduced in 2006, supports data rates up to 10Gb/s while maintaining the same compact size. Both SFP and SFP+ connectors support Gigabit Ethernet, Fibre Channel, SONET, and other communication standards, with copper and optical variants available.
Product Features
| Product Name: |
SFP+ Cage |
| Product Line: |
Small Form-factor Pluggable |
| Connector Gender: |
Female Centronic Connector |
| Contact Type: |
Small Form-factor Pluggable |
| Number of Position: |
No Connector, Cage only |
| Ports: |
1x6 Ports |
| Finish: |
Nickel Silver |
| Lightpipe: |
With Light |
Electrical Specifications
| Current Rating: |
1AMP |
| Withstanding Voltage: |
500v for one minute |
| Insulator Resistance: |
500MΩ min (at DC500V) |
| Contact Resistance: |
35MΩ Max |
| Operation Temperature: |
-55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Networking
- Telecommunications
- Switches
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet
- Servers
